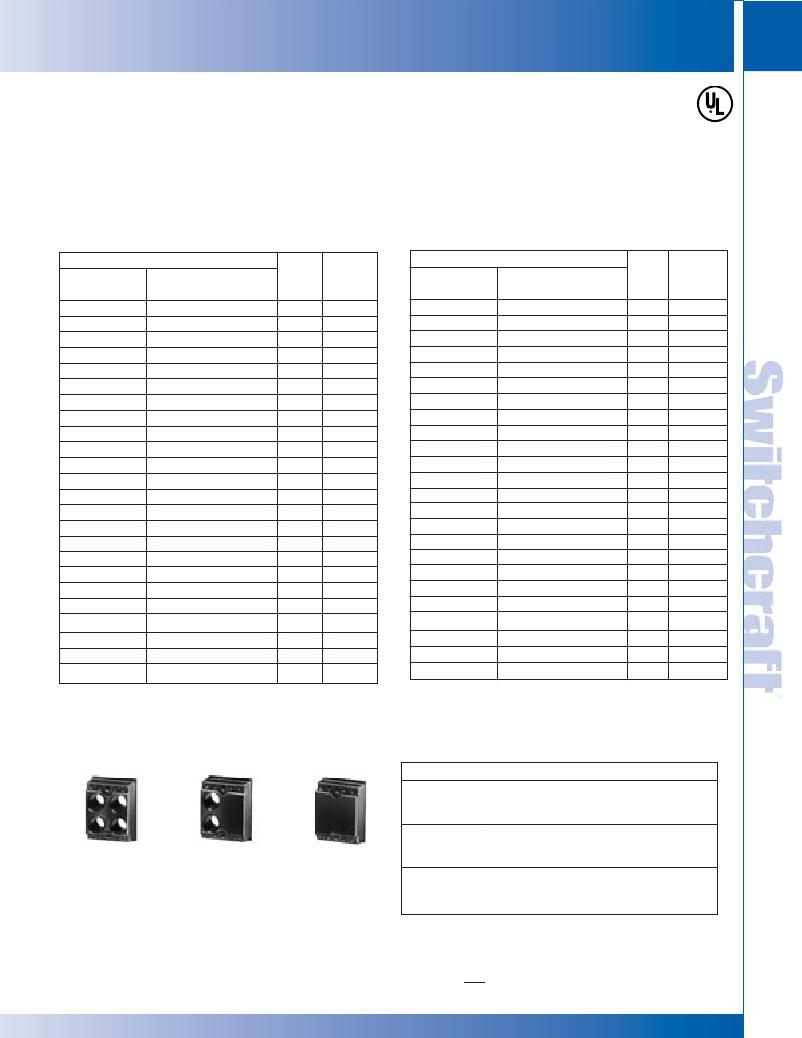

JACK PANELS
FAX: 773 792-2129 LONG FRAME 1/4" MODULAR TWIN ROW JACK PANELS
* Please visit the product pages on our website for the most up-to-date product information
LONG FRAME (1/4") MODULAR TWIN ROW JACK PANELS (continued)
ORDERING
207
Order popular assemblies by part number from table. If you
wish to mount components on the panels, order blank panels
and refer to MODULE INSERTS below. On special order,
various combinations of colored inserts mounted in basic
panels, as well as many different types of complete
assemblies are possible. Provide complete details with your
Part Numbers*
inquiry or order. Standard mount panels are available with holes
pre-drilled for vertical designation strips, Series DS320. Add
prefix “D” to part number (JPD012000, JPD022000,
JPD072000, JPD082000, etc.).
Part Numbers*
Assembly with Jacks
# of
MT-Jax
?
Assembly with Jacks
# of
MT-Jax ?
Panel Only
JP012000
-
-
-
? JP022000
-
-
-
? JP032000
-
-
-
? JP042000
-
-
-
JP052000
-
-
-
? JP062000
-
-
-
Having Solder Lugs
-
? JP012S32A
? JP012S32B 1
JP012S34B 1
-
? JP022S32A
? JP022S32B
? JP022S34B
-
? JP032S32A
? JP032S32B
? JP032S34B
-
? JP042S32A
? JP042S32B
? JP042S34B
-
? JP052S32A
? JP052S32B
? JP052S34B
-
? JP062S32A
? JP062S32B
? JP062S34B
Jacks
None
48
48
48
None
56
56
56
None
48
48
48
None
56
56
56
None
48
48
48
None
56
56
56
Installed
MT332A
MT332B
MT334B
MT332A
MT332B
MT334B
MT332A
MT332B
MT334B
MT332A
MT332B
MT334B
MT332A
MT332B
MT334B
MT332A
MT332B
MT334B
Panel Only
? JP072000
-
-
-
? JP082000
-
-
-
? JP092000
-
-
-
? JP102000
-
-
-
? JP112000
-
-
-
? JP122000
-
-
-
Having Solder Lugs
-
? JP072S32A
? JP072S32B
JP072S34B
-
? JP082S32A
? JP082S32B
? JP082S34B
-
? JP092S32A
? JP092S32B
? JP092S34B
-
? JP102S32A
? JP102S32B
? JP102S34B
-
? JP112S32A
? JP112S32B
? JP112S34B
-
? JP122S32A
? JP122S32B
? JP122S34B
Jacks
None 1
52
52
52
None 2
64
64
64
None
52
52
52
None
64
64
64
None
52
52
52
None
64
64
64
Installed
MT332A
MT332B
MT334B
MT332A
MT332B
MT334B
MT332A
MT332B
MT334B
MT332A
MT332B
MT334B
MT332A
MT332B
MT334B
MT332A
MT332B
MT334B
1. Add a “1” to the part number to specify a cable tie bar.
Mounting Screws: #6-32, P10725 for jack mounting and #4-40,
P2435 for insert mounting, can be ordered separately.
? Special order only; contact Switchcraft.
MODULE INSERTS
* Panels with jacks having wire-wrapping terminals are approximately 10%
higher in price. Contact Switchcraft.
1. Non-modularized equivalent is WEco #230A.
2. Non-modularized equivalent is WEco #231A.
JP9942
JP9922
JP9902
Part Number
Description
Standard color is black, matte finish plastic. Contact
JP9942
JP9922
Black module insert with four jack openings
(less jacks). Includes two, #4-40 machine
screws for mounting.
Black module insert with two jack openings
(less jacks). Includes two, #4-40 machine
screws for mounting.
Switchcraft. Inserts are ideal for mounting directly in control
panels and chassis where convenient jack connections are
required. Applications include test outlets, remote equipment
connections and headsets such as those used in telephone
and telecommunications equipment.
JP9902
Black module insert without holes. Includes
two, #4-40 machine screws for mounting.
Used where no jacks are needed.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
